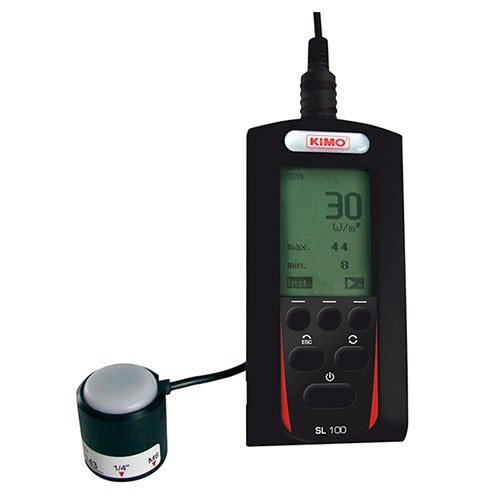

Solarimeter
Type : SL-100
Product : Kimo Instrument ( France)

Spesification :

a. Instrument
• Solar irrigation range : from 1 W/ m2 to 1300 W/ m2
• Energetic exposure range : from 1 Wh/ m2 to 500 kWh/ m2
• Frequency of measurement : 2 / s
• Accuracy : 5% of measurement
• Calculation frequency ( W/ m2) : 1 / min ( average on 60 seconds)
• Capacity ( Wh/ m2) : 3 days – Results saved when instrument is switched off
• Operating temperature : from -10° C to + 50° C
• Storage temperature : from -10° C to + 55° C
• Housing dimensions : 58 x 120 x 33 mm
• Autonomy : more than 72 hours in continuous mode, when using a power supply adapter
• Power supply : 3 LR3-AAA batteries
• Electronic : Digital
• Electronic board : Varnish
• Conformity : in accordance with RoHS directives

b. Solar cell
• Spectral response : from 400 to 1100 nm
• Nominal sensitivity : 100mv for 1000W/ m2 *
• Response in cosine : corrected until 80°
• Coefficient in temperature : + 0, 1% / ° C
• Effective area : 1 cm2
• Operating temperature : from -30° C to + 60° C
• Humidity dependence : 100% RH
• UV performance : excellent ( PMMA filter)
• Mode : photovoltaic
• Material : polycristallin silicon
• Front face : translucent PMMA
• Tightness : Polyurethane resin and housing in PMMA and polyacetol
• Cell weight : 60g
• Cell dimensions : 30 x 32 mm
• Cable length : 1, 25 m ( can be unplugged)
• Complete unit : Tripod, Solar cell, manual book, certificate of calibration Carying cas
