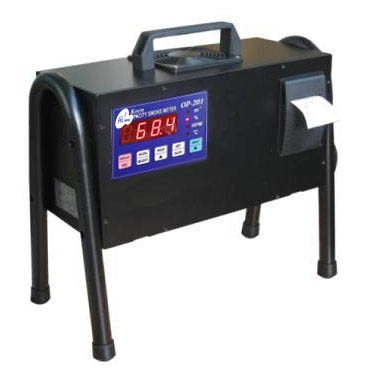

PORTABLE DIESEL SMOKE METER
( Alat uji emisi kendaraan yang berbahan bakar Solar)
Type: OP-201
Negara Asal: Korea

• Measuring item: Smoke opacity ( % , k [ m-1] )
- RPM ( option) , ° C ( option)
• Principle: Light extinction method
• Light source: Green LED( 565nm)
• Detector: Photo diode
• Range: 0.0~ 100.0% ( 0.00~ 21.42m-1 )
• Accuracy: Less than 1%
• Warm-up time: 3~ 6 minutes
• Display time: 4 times / sec
• Power: 220V / 110V AC 50/ 60Hz
• Temperature: -10~ 40
• Dimension: 450( W) x 200( D) x 245( 425) ( H) mm
• Weight: About 7kg
• Option: Main Unit
- RPM/ Oil temp.
- Built-in printer
- NDF filter
