Specification :

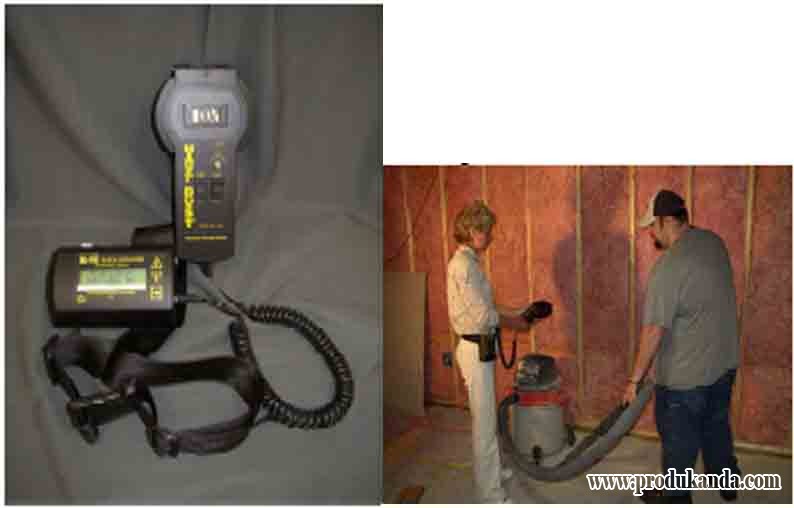

HD-1100 HAZ-DUST 10¼ m Particulate Monitor HAZ-DUST with concentration
• Range 0.01-200mg/ m3.
• Display : LCD 3.5 digits mg/ m3 concentration reading
• Calibration : NIOSH 0600 using ARD test dust
• Sensing range : 0.01-200mg/ m3
• Particle size range : 0.01-50¼ m
• Precision : + / - 0.02mg/ m3
• Accuracy : + / -10% to NIOSH # 0600
• Power : 6VDC NiMH rechargeable battery
• Operating time : > 8 hours
• Charging time : 10-12 hours
• Signal output : 0-2 volt
• Humidity : 95% non-condensing
• Dimensions : 9” x3” x1.5”
• Weight : 2lbs
• DL-103 Data Logger Single channel, 3 keys programmable operation.
Real-time clock display with on screen calculation of statistics.
• Recording Time : 1 min to 12 hours
• Sampling Rate : 1 or 2 sec/ sample
• Display : 4/ 20 alphanumeric LCD on screen display, TWA, STEL, MAX/ MIN concentration, start/ stop time
• Memory : 21, 500 data points
• Output : RS-232, 9600 baud
• Battery : 7.2v NiMH
• Operating Time : 12 hours
• Dimensions : 5.5x3.5x2.0 in
• Weight : 1lb.
